Titanium Bolts, Titanium Bolt, Titanium Fasteners, Ti Bolts

All titanium bolts, metric fasteners, nuts
and hardware is Grade 5 Ti.
6AL-4V.

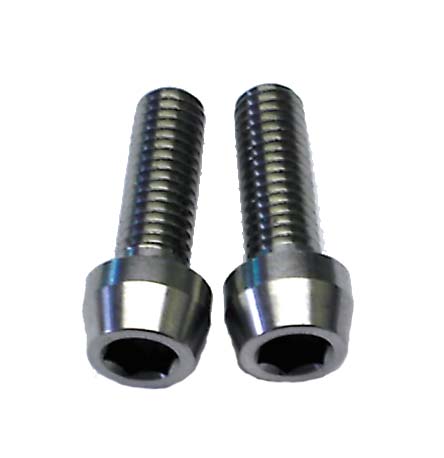

M6 Titanium Bolts
Taper Head

M6X15 =	3.20
M6X16 =	3.25
M6x17.5 =	3.50
M6x20 =	3.50
M6x25 =	3.90
M6x30 =	4.00
M6x35 =	4.20
M6X40 =	4.40
M6x45 =	4.50
M6x50 =	4.60
M6x55 =	4.75

Titanium
Non-Taper M6

M8X20 =	4.00
M8X25 =	4.30
M8X30 =	4.60
M8X35 =	4.80
M8X40 =	5.00
M8x50 =	5.80
M8x70 =	7.00
M8x75 =	7.50
M8x80 =	9.00
M8x100 =	14.00
M8x120 =	16.50
M8x130 =	18.00
M8X140 =	20.00

M8 Titanium Bolts
Non-Taper

Extra-long Taper M5

M5x170

M5x130

$12.50

$10.50

These are threaded 15mm. they can be cut
and re-threaded

Extra-long M5

M5x130

$10.00

These are threaded 15mm. they
can be cut and re-threaded

M6X8.5 =	2.40
M6x10 =	2.70
M6X14 =	3.00
M6X15 =	3.20
M6X16 = Torx Drive	3.50
M6X16 =	3.20
M6x17.5 =	3.30
M6x18 =	3.30
M6x20 = Torx Drive	3.70
M6x20 =	3.50
M6x25 =	3.80
M6x30 =	4.00
M6x35 =	4.20
M6X40 =	4.40
M6x45 =	4.50
M6x50 =	4.60
M6x55 =	4.80
m6x60 =	5.35
M6x65 =	5.80
M6x70 =	6.00
M6x75 =	6.30
M6x80 =	6.60
M6x90 =	7.00
M6x130 =	12.50

M8X10 =	3.80
M8X15 =	3.90
M8X20 =	4.00
M8X25 =	4.40
M8x30 =	4.60
M8x35 =	4.80
M8x40 =	5.30
M8x45 =	5.50
M8x50 =	6.10
M8x55 =	6.30
M8X60 =	6.60
M8x70 =	7.00
M8x75 =	7.00
M8x80 =	8.00
M8x100 =	14.00
M8x120 =	15.00
M8x130 =	16.00

M8 Titanium Bolts
Taper Head

M4X20 =	2.50
M5X10 =	2.50
M5X12 =	2.50
M5X15 =	2.60
M5X20 =	2.75
M5X25 =	3.00
M5X30 =	3.40
M5X35 =	3.60
M5X40 =	4.00
M5X45 =	4.40
M5X50 =	4.75
M6X10 =	2.80
M6x15 =	2.95
M6x20 =	3.15

M6X30 =

4.00

Titanium Taper Head
M10 - 1.5 pitch

M10x20 =	6.50
M10x25 =	7.25

M10x30 =	8.00
M10x35 =	8.50

M10x40 =

9.30

M7x130

M7x40

$19.00

$6.40

M7x35

$5.50

Shallow Head M7

1.0 Pitch

M6x10

3.00

M6x12.5

2.80

M10x75 =
1.25 Pitch

14.00

M6X40 =

4.40

M8x15 =

3.80

Uses m5 Allen

M8x25 =

4.25

M6X25 =

3.50

M8x15 =

3.90

M8x20 =

4.00

M8x30 =

4.35

M8x40 =

4.90


M7X20 =	4.00
M7x25 =	4.25
M7x30 =	4.50
M7x35 =	4.75
M7x40 =	5.25
M7x50 =	6.00
M7x60 =	6.20

M7 Titanium Bolts
Taper Head

1.0 Pitch

Uses 6mm Allen

M10x15 =	6.00
M10x20 =	6.50

M10x25 =	7.50
M10x30 =	8.00

M10x40 =

9.00

M10x60 =

13.00

M10x70 =

14.00

M10x50 =

12.00

$7.00

M8x75mm (59mm unthreaded)

M8x10 =

3.75

M10x20 =
1.0 Pitch

6.50

M6x60 =

5.00

M10x35 =

8.50

M6x130 =

12.50

Used on some stems. 24mm threaded

M12x70 =
1.75 Pitch

14.00

Non-Taper M12

Non-Taper M10

Ti Countersunk Titanium Bolt Set of 4

Countersunk bolt set
of 4 for mounting
pedal inserts.
4 Countersunk
M4x16.5mm bolts.

$12.00

M10x65 =

10.25

M12
1.25 Pitch - 24mm Flange - 18mm Hex

$9.00

M12
1.5 Pitch

$6.00

M10
1.5 Pitch - 19mm Flange - 15mm hex

M10x60 =

10.00

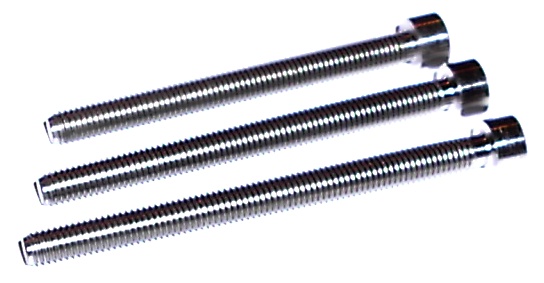

These are m5
titanium bolts and
are fully threaded.
Non taper head.

M5 Titanium Bolts - Non Taper
Fully Threaded

M10x75 =

14.50

M5x55 =

5.50

M5x60 =

5.90

M5x65 =

6.20

M10 Titanium Bolt
Taper Head
M10 -1.25 pitch

1.25 Pitch

$6.50

M8x65mm (49mm unthreaded)

$1.50

M5 Washer - 7mm Diameter

This washer has a narrower head than standard.
This will work in applications such as stems,
some levers and caliper. Some stems use a
smaller washer diameter and a standard bolt
and washer won`t fit.
I don't warranty these for cracking and please
check the OD of the washer bore you need.

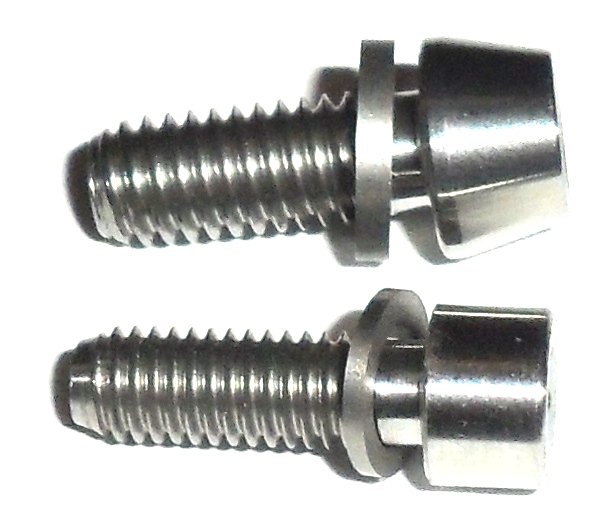

The top bolt in the photo is a standard M6 Bolt
The bottom is a narrow head M5 with 8mm OD
washer

Titanium Narrow Washers
For use on Stems and Calipers

$1.50

M5 Washer - 8mm Diameter

$1.70

M6 Washer - 10mm Diameter

M10x40 =
1.25 Pitch

9.00

$6.80

M8x70mm (54mm unthreaded)

M10x15 =
1.5 Pitch

6.25

M10x15 =
1.25 Pitch

6.25

M6X50 =

5.00

M7X20 =	3.80
M7X20 =	4.00
M7X25 =	4.25
M7X30 =	4.50
M7X35 =	4.75
M7X40 =	5.25
M7X100 =	14.00
M7X120 =	15.00
M7X130 =	16.00
M7X140 =	17.00

Non-Taper M7

Bolts over 25mm are not fully threaded.
General M6 Head Diameter= 10mm

$6.00

M10
1.25 Pitch - 19mm Flange - 14mm hex

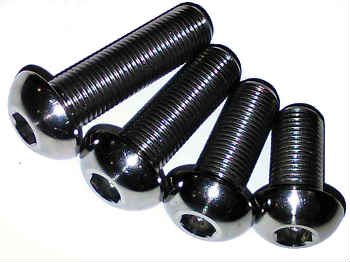

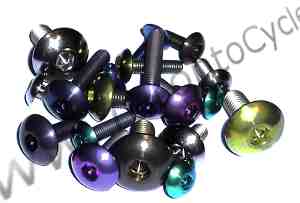

Titanium Button
Head Bolts

M5X10 = 10mm Head Diameter	3.50
M5X10 = 12mm Head Diameter	3.50
M5x10 = 16mm Head Diameter	3.60
M5X15 = 10mm Head Diameter	3.50
M5X15= 12mm Head Diameter	3.55
M5X15 = 16mm Head Diameter	3.65
M6X10 = 16mm Head Diameter	3.65
M6x15 = 16mm head Diameter	3.80
M6x15 = 16mm head Diameter	4.20
M6x20 = 16mm head Diameter	4.40
M6x30 = 13mm head Diameter This is fully threaded	4.80
M6x40 = 13mm head Diameter This is fully threaded	5.00

M6x35 =

4.35

M6x40 =

4.50

These Bolts over are fully threaded.
General M6 Head Diameter= 10mm

Titanium Taper M6
Fully Threaded

Please note the head style on these titanium bolts can vary.
This style of button head will be phased out.

M10x15 =

6.00

M6X60 =

5.40

M5X35 =

3.30

M5X40 =

3.50

M5X30 =

3.00

M5X8.5 =	2.40
M5X10 =	2.40
M5X12.5 =	2.45
M5X15 =	2.50
M5X17.5=	2.55
M5X20 =	2.60
M5X22.5 =	2.65

M5X25 =

2.80

M5X50 =

3.80

M5X70 =

4.80

6mm

Titanium Fender Washers

$2.00

These titanium washers have a larger OD
than standard washers

6mm washer OD=19.5mm

M8 = 1.25 Pitch (Standard Pitch)

M8 = 1.25 Pitch

Titanium Water Bottle Bolt Pair

$4.00

This is a titanium water bolt pair.
m5x12mm - #05112
3 grams for the pair

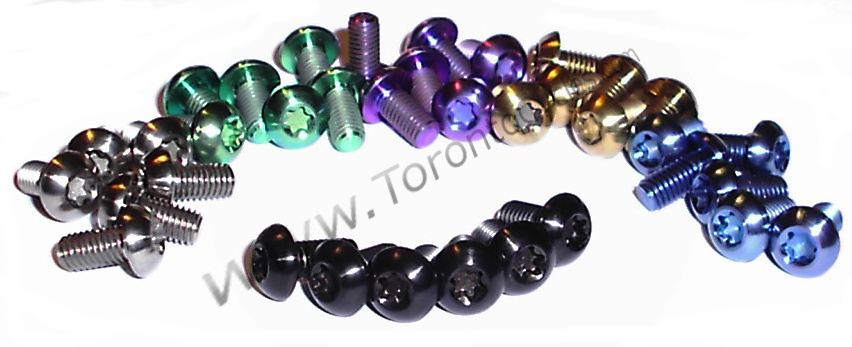

Black Bolt Pair

M5x12 =	2.60
M5x15 =	2.70
M5x20 =	2.75
M5x25 =	2.80
M5x30 =	2.85
M6X10 =	2.80
M6x12.5 =	2.90
M6X15 =	3.30
M6x20 =	3.60
M6x25 =	3.80
M6x30 =	4.00
M6x40 =	4.20
M8x10 =	3.60
M8x15 =	3.80
M8x20 =	4.00
M8x25 =	4.25
M8x30 =	4.60
M8x35 =	4.80
M8x40 =	5.00
M8x45 =	5.60
M8x55 =	6.50
M8x70 =	7.00
M8x75 =	7.50

These have half the normal head height

Titanium Shallow
Head Bolts

M5x8.5 =

2.55

M5x10 =

2.60

M6x19 Titanium Avid V-Brake
SD/SL/FR-5 Lever Bolts

$3.80

Single Avid bolt

Fits Avid SD-7, SD SL & FR-5 levers.
M6x20mm Bolt.
8mm head diameter, 5mm allen, 4mm head
height.

$7.00

Two Avid bolts

$13.50

Four Avid bolts

$1.80

M8 Washer - 12.5mm Diameter

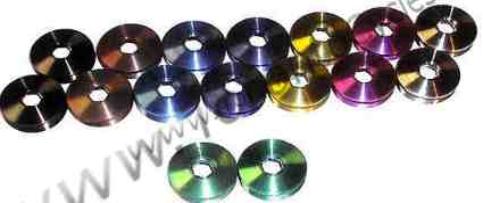

Anodizing Prices for coloring ti include your entire order.
If you would only like part of the order anodized please make sure you let me know at payment.
The photos on the ti anodize page are better representations of colors.
I cannot make black on demand. This is a special process and have on the black ti bolt page.

M8x15 =

4.00

M8x35 =

5.00

M8x20 =

4.20

8mm Titanium Taper Head
1.0 pitch
These are finer thread than normal.
Used on some hubs and motorcycle.

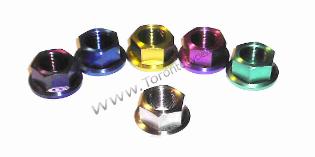

Titanium BMX /Vintage Style Axle
Nuts / Shock and Quill Bolts
Are located on the FRAMES page of
this website.
Other bolt items related to a component are on other pages.

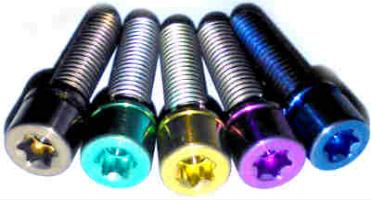

Titanium Torx Bolts - Disc Brake Rotor
M5 Threads - T25 socket

6 Titanium Torx Disc Brake Rotor Bolts (12.5mm)

12 Titanium Torx Disc Brake Rotor Bolts (12.5mm)

There is a larger selection of ti torx bolts on the Disc Brake and
Rotor page

Titanium Narrow Head Bolts
Integrated Crank Arm Lock Bolts

M4X15 =

2.40

M4X12.5 =

2.35

M4X16.5 =

2.45

M4X16 =

2.45

M4X10 =

2.30

This is for a replacement bolt set for ODI
lock on grips.
The OD of these heads are more narrow
than standard m4 bolts. The head OD is
5.4mm
3.5 gram each

Titanium Bolts for ODI Lock On Grips
Also for Derailleur Limiter Screws

$10.00

4 M4x10 ODI Bolts

$10.00

4 M4x12.5 ODI Bolts

$10.00

4 M3.5x10 ODI Bolts

Owned and Operated by Toronto Cycles Productions Inc.

Campagnolo Shift Lever Clamp Titanium Nut & Bolt

This is for a replacement
titanium nut and bolt for
Campagnolo shift lever
clamps.
Does not include the clamp.
7.5g for the nut and bolt.
The nut uses a TORX socket

$3.25

M6x15 Narrow Head (Levers)

This bolt has a narrower head than
standard bolts. This will work in
applications such as integrated crank
(non-drive side) lock bolts and brake
lever mount bolts.
Head Diameter = 9mm (Standard is 10mm)
5mm Hex Socket

M6 Titanium Narrow Head Bolts
Integrated Crank Lock Bolt - Brake Lever

$3.40

M6x20 Narrow Head (Levers)

$3.30

M6x17.5 Narrow Head (Levers)

This bolt has a narrower head than
standard bolts. This will work in
applications such as integrated crank
(non-drive side) lock bolts and brake
lever mount bolts.
Head Diameter = 9mm
5mm Hex Socket

6mm Titanium Narrow Head Bolts

M7 Titanium Narrow Head Bolts

M6x30 Narrow Head

Titanium Non-Taper Head Bolts

M5 Titanium Bolt

Titanium Countersunk Bolts

Countersunk Bolt measurements include the head.

Countersunk Bolts can also be found on
the minature bolt page

$3.00

$2.80

M10
1.0 Pitch - 22mm flange - 15mm hex
Very common on Raleigh Vintage Rear

$6.00

$2.60

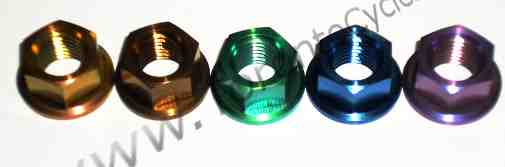

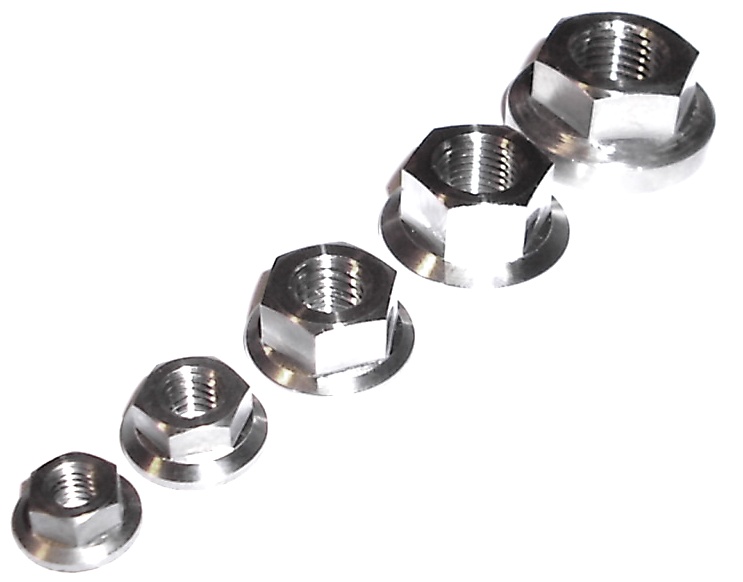

Titanium Flange Nuts

$2.20

$2.80

M3 x 15mm Narrow Bolt

These are replacement bolts for adjusters on
most shimano type derailleurs.
The narrow head will allow the head to fit into
the recess portion of the body.
The OD of these heads are more narrow than
standard 3mm bolts. The head OD is 4mm.
Fully Threaded.

Narrow Titanium Bolts for Derailleur Limiter

$2.80

M4 x 15mm Narrow Bolt

These are replacement bolts for tension
adjusters on most derailleurs.
The narrow head will allow the head to fit next
to the guide plate portion of the body.
The OD of these heads are more narrow than
standard 4mm bolts. The head OD is 5.4mm.
Fully Threaded.

Narrow Titanium Ti Bolts for Derailleur Tension

This bolt has a narrower head than
standard bolts. This will work in
applications such as stems and some
levers. Some stems use a smaller head
diameter and a standard bolt won`t fit.
Head Diameter = 7.5mm (Standard is 8.5mm)
4mm Hex Socket, 5mm bolt.
Washers are installed.

M5 Titanium Narrow Head Bolts
With Washers - Stems

$3.25

M5x17 Narrow Head (Stems)

$3.45

M5x20 Narrow Head (Stems)

M5 Titanium Narrow Head Bolts - Stems

$3.30

M5x20 Narrow Head (Stems)

Shallow Head Titanium Water Bottle Bolt Pair
M5x8.5

$4.60

Shallow Head Titanium Water Bottle Bolt Pair
M5x12

$4.80

Torx Head Titanium Water Bottle Bolt Pair
M5x10

$4.80

Shallow Head Titanium Water Bottle Bolt Pair
M5x10

$4.80

$6.50

M8x60mm (44mm unthreaded)

Used on Cannondale and other
m6 Frame and Shock mount
applications.
These have a longer shank than
standard bolts.
M6 Threads. Shallow head Style.

Titanium Shock (Frame) Mount Bolts
M6 - Cannondale Scapel

$6.00

M8x55mm (39mm unthreaded)

Used on many Frame and Shock
mount applications.
These have a longer shank than
standard bolts. 16mm threaded.
M8 Threads. Shallow head Style.

8mm Titanium Shock (Frame) Mount Bolts

$5.75

M8x50mm (34mm unthreaded)

$4.25

M6x30mm (22mm unthreaded)

$5.00

M6x45mm (36mm unthreaded)

$4.65

M6x35mm (25mm unthreaded)

$5.50

M8x45mm (29mm unthreaded)

$4.60

M8x30mm (14mm unthreaded)

1/4" UNF

Left Hand Threaded
Titanium Lock Nuts

$5.00

Left hand nuts are used in certain
applications where a right hand (Standard)
nut might back off and come loose. Some
spindles, flywheel and rotating parts use
these. I do not know specific applications.
M5 is a common size for spindles.

1/4" UNC

$5.00

M5 Locknut

$4.00

Titanium Flat Washers

M6
ID=6.2mm : OD=12mm : 1.5mm Thick

M5
ID=5.2mm : OD=10mm : 1mm Thick

M4
ID=4.2mm : OD=8.8mm : 0.8mm Thick

$1.40

$1.30

$1.20

M8
ID=8.2mm : OD=15.5mm : 1.6mm Thick

$1.65

$1.50

M12
ID=14mm : OD=23.5mm : 2.5mm Thick

$1.80

M7
ID=7.2mm : OD=14mm : 1.6mm Thick

$1.50

Narrow Washers are at the bottom page

M3
ID=3.2mm :

$1.10

This bolt has a narrower head than
standard bolts. .
Head Diameter = 7.5mm (Standard is 8.5mm)
4mm Hex Socket, 5mm bolt.

5mm Titanium Narrow Head Bolts

$3.50

M5x40 Narrow Head

Titanium Drilled Washers

M6
ID=6.2mm : OD=12mm : 1.5mm Thick

M5
ID=5.2mm : OD=10mm : 1mm Thick

$2.40

$2.30

M8
ID=8.2mm : OD=15.5mm : 1.6mm Thick

$2.60

M7
ID=7.2mm : OD=14mm : 1.6mm Thick

$2.50

Anodizing
I can color most ti into various colors. Please check out titanium anodizing page.
Threaded Length
Metric Titanium Bolts and Fasteners over 25mm generally have an un threaded section. For
Example: An M6x40 is generally threaded 25mm and un threaded 15mm.
Metric Countersunk Bolt measurements include the head.
Please check the measuring page if you have any questions on how bolts are measured.
Please Note: If the add to cart button is missing then I am out of stock on that item.

$3.00

M10

$2.80

Hex Flange Lock Nuts

5mm

$3.00

These have a flange on the bottom

6mm

$3.30

8mm

$3.50

We stock American and Custom Titanium Bolts Too!

8mm: OD= 16mm / Height = 8mm

6mm: OD= 14mm / Height = 9mm

5mm: OD= 12mm / Height = 7mm

6mm: OD= 14mm / Height = 6mm

5mm: OD= 12mm / Height = 5mm

$8.00

These have half the normal head height but have a larger
diameter head. Black is available on the black titanium
bolt page.

Titanium Shallow Button Head Bolts

$3.00

M5x10 - 12mm head

$3.10

M5x15 - 12mm head

$3.20

M5x20 - 12mm head

$3.30

M6x20 - 16mm head

$3.40

M6x25 - 16mm head

$3.50

M6x30 - 16mm head

$3.70

M8x20 - 20mm head

$3.10

M5x17.5 Narrow Head (Stems)

Silver Bolt Pair

S hock Bolts and Vintage Style Axle
Nuts are on the Frames page

$4.00

M8
1.0 Pitch - This is finer than standard

$3.00

8mm

$2.20

8mm washer OD=20mm

Please refresh browsers (F5 Key) as I
update this website daily

$6.00

M10
1.25 Pitch - 22mm Flange - 15mm hex

M5x170

$12.50

Titanium Hex Flange bolts and nuts will be
moved to the Titanium Motorcycle Page

5mm

$3.00

These titanium dome nuts cover the end of
the nut for a more finished look. The bolt
threads cannot be too long or will bottom out.

7mm insertion debth / Height = 10mm

Titanium Dome Nuts

6mm

$3.40

9mm insertion debth / Height = 12mm

8mm

$3.70

11mm insertion debth / Height = 15mm

Titanium Lock Washers

5mm

$1.80

6mm

$2.00

8mm

$2.20

10mm

$2.50

12mm

$2.80

14mm

$3.00

M14
1.5 Pitch - 28mm Flange - 19mm Hex

$10.00

M5X45 =

3.65

M10x65 =

13.50

Titanium Bolts, Titanium Nuts, Titanium Fasteners, Metric Titanium Fasteners

M6X65 =

5.70

Titanium Hex Head Flange Bolts, Sprocket Nuts
have moved to the Titanium Motorcycle page.
Drilled Titanium Fasteners

Add Gold to Your Entire Order For $2.00

Add Blue to Your Entire Order For $2.00

Add Green to Your Entire Order For $4.00

Add Pinkish to Your Entire Order For $4.00

Add Brown to Your Entire Order For $2.00

M6 Locknut

$4.50

M5x185
Rear Skewer Bolt for Fat Bikes

$12.50

$4.00

M8x20 Narrow Head

This bolt has a narrower head than
standard bolts. This will work in
applications such as BMX Stems, Seat
Binder lock bolts and some brake lever
mount bolts.
Head Diameter = 11mm
6mm Hex Socket

M8 Titanium Narrow Head Bolts- BMX

$4.30

M8x25 Narrow Head

$4.00

M7x20 Narrow Head (Levers)

This bolt has a narrower head than
standard bolts. This will work in
applications such as integrated crank
(non-drive side) lock bolts and brake
lever mount bolts.
Head Diameter = 10mm
5mm Hex Socket

$4.50

M7x30 Narrow Head

$4.00

$4.50

M8x30 Narrow Head

$4.00

M8x20 Black Narrow Head

$4.30

M8x25 Black Narrow Head

$4.50

M8x30 Black Narrow Head

M14
ID=15mm : OD=28mm : 2.5mm Thick

$2.20

M10x70 =

12.50

$4.30

M7x25 Narrow Head

Shipping Information
Please check out FAQ page or Blog for
shipping rates and information.

Please Note that Tracking
From Canada is Costly and
Extra Charges Apply

All Prices are in US Dollar
$5.00 Shipping via Air Mail.
Overseas is $10.00
Tracking is extra Costs!

$2.00 Per Bolt

Titanium Hex Nuts

$2.20

$2.10

$2.00

M10
1.5 Pitch

M8
1.25 Pitch

$2.55

$2.40

M10
1.25 Pitch

$2.55

Titanium Low Profile Lock Nuts

$3.20

M12
1.25 Pitch -19mm hex - 12mm height

$5.50

M12
1.5 Pitch -19mm hex - 12mm height

$5.50

M14
1.5 Pitch -22mm hex - 13.5mm height

$7.00

M10
1.25 Pitch - SHALLOW HEIGHT
17mm hex - 8mm height

$6.00

M10
1.5 Pitch
17mm hex - 10mm height

$6.00

M8
1.0 Pitch Hex Nut
These have finer pitch than standard
nuts and are used on some BMX
style axles

$2.40

M10
17mm hex - 10.1mm height
1.25 Pitch

M8
13mm hex - 6.8mm height

M6
10mm hex - 4.8mm height

$3.80

$3.30

M8
13mm hex - 8.25mm height - 1.0 Pitch

M6
10mm hex - 6.4mm height

M5
8mm hex - 5.0mm height

$3.50

$3.00

$2.75

M7
11mm hex - 8.25mm height

$3.50

$2.50

Titanium Lock Nuts

M8
13mm hex - 8.25mm height - 1.25 Pitch

$5.00

M8
1.0 Pitch - Fine Threading

$2.40

M10
1.25 Pitch
17mm hex - 8mm height

$6.00

Taper M5

M5 Titanium Bolts

General M5 head Diameter = 8.5mm

M5X8.5 =	2.40
M5X10 =	2.45
M5X12 =	2.50
M5X15 =	2.50
M5X16 =	2.55
M5X17.5=	2.55
M5X18=	2.55
M5X20 =	2.60
M5X22.5 =	2.60
M5X25 =	2.85
M5X30 =	3.20
M5X35 =	3.60
M5X40 =	4.30
M5X45 =	4.50
M5X50 =	4.75
M5X55 =	4.85
M5X60 =	5.00
M5X70 =	5.50
M5X80 =	5.80

M8x70 =

7.00

M8x55 =

5.70

M8x60 =

6.25

M8x80 =

7.50

M8x50 =

5.25

M8x85 =

8.00

5mm

$1.50

5mm washer OD=15mm

5mm

$1.90

5mm washer OD=22mm

5mm

$1.70

5mm washer OD=18mm

Longer Non Taper M8 Bolts are on The Frames Page

Metric Titanium Studs

$3.00

M6 - 30mm long

This is for titanium set screws. These
replace the little bolts on platform
pedals. These work on most pedals.
m4 / 2mm hex

$1.10

Titanium Socket Set Screws

M4x8 Set Screw

$1.10

M4x10 Set Screw

$1.20

M4x12 Set Screw

$1.40

M4x15 Set Screw

$2.10

M5x10 Set Screw

$2.30

M5x15 Set Screw

$2.50

M6x10 Set Screw

$2.70

M6x15 Set Screw

5mm Dropout Titanium Studs
For Sliders on most single speeds

$2.50

M5 - 35mm long

$2.70

M5 - 40mm long

$2.00

M5 - Jam Nut

FA Q

Add Tracking to your
Order:
Canada = 8.00

USA = 12.00

International = 40.00

Please note that a tracking number is
extra cost and is very expensive
overseas. Some orders take extra time
so please be patient if a delay occurs.
Please check our FAQ page
if you have a question
